MH 110

The Horizontal packaging machines, series MH-110, both in simplex and duplex version, have been developed for the packaging of powder, granule, liquid and pasty products, as well as refreshing tissues in 3 or 4 side sealed sachets.

SKU: MH 110 Category:

Description

Description

The Horizontal packaging machines, series MH-110, both in simplex and duplex version, have been developed for the packaging of powder, granule, liquid and pasty products, as well as refreshing tissues in 3 or 4 side sealed sachets.

Starting from a reel of heat-sealable material, the film is folded into a “V” shape and by intermittent motion, the machine forms, fills and seals in an automatic way.

The sachets are transported by intermittent motion. At the end of the process, sachets can be cut one by one or twin versions or even making strings of sachets linked together by intermediate perforation.

The dosage can be made according to the product to be packed:

  1. Endless dispenser for powdered products.
  2. Volumetric dispenser for granulated products.
  3. Dosing unit for liquids or pastes.

Technical Specifications + sachet types and sizes

Model
MH-110 Simple
MH-110 Duplex
Speed:
100 spm
200 spm
Pouch mínimum size
35x35 mm
35+35x35 mm
Pouch maximum size
110x130 mm
65+65x130 mm
Volume:
1 a 60 cc
1 a 20 cc
Electrical consumption:
1.8 KW
3.0 KW
Reel dimension:
Ø Max = 450mm / Anch. Max = 260mm / Cono interior: 70 a 75mm
Machine dimension:
990 mm x 1895 mm x 2245 mm

Videos

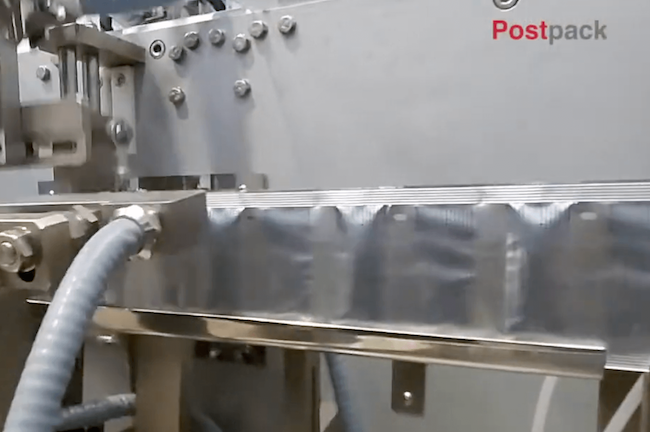

See the machine working

MH-110 0:22
