MH 170

The Horizontal packaging machine  MH-170has been developed for the packaging of powder, granule, liquid and pasty products in 3 or 4 side sealed sachets.

SKU: MH 170 Category:

Description

Description

The Horizontal packaging machine MH-170 has been developed for the packaging of powder, granule, liquid and pasty products in 3 or 4 side sealed sachets.

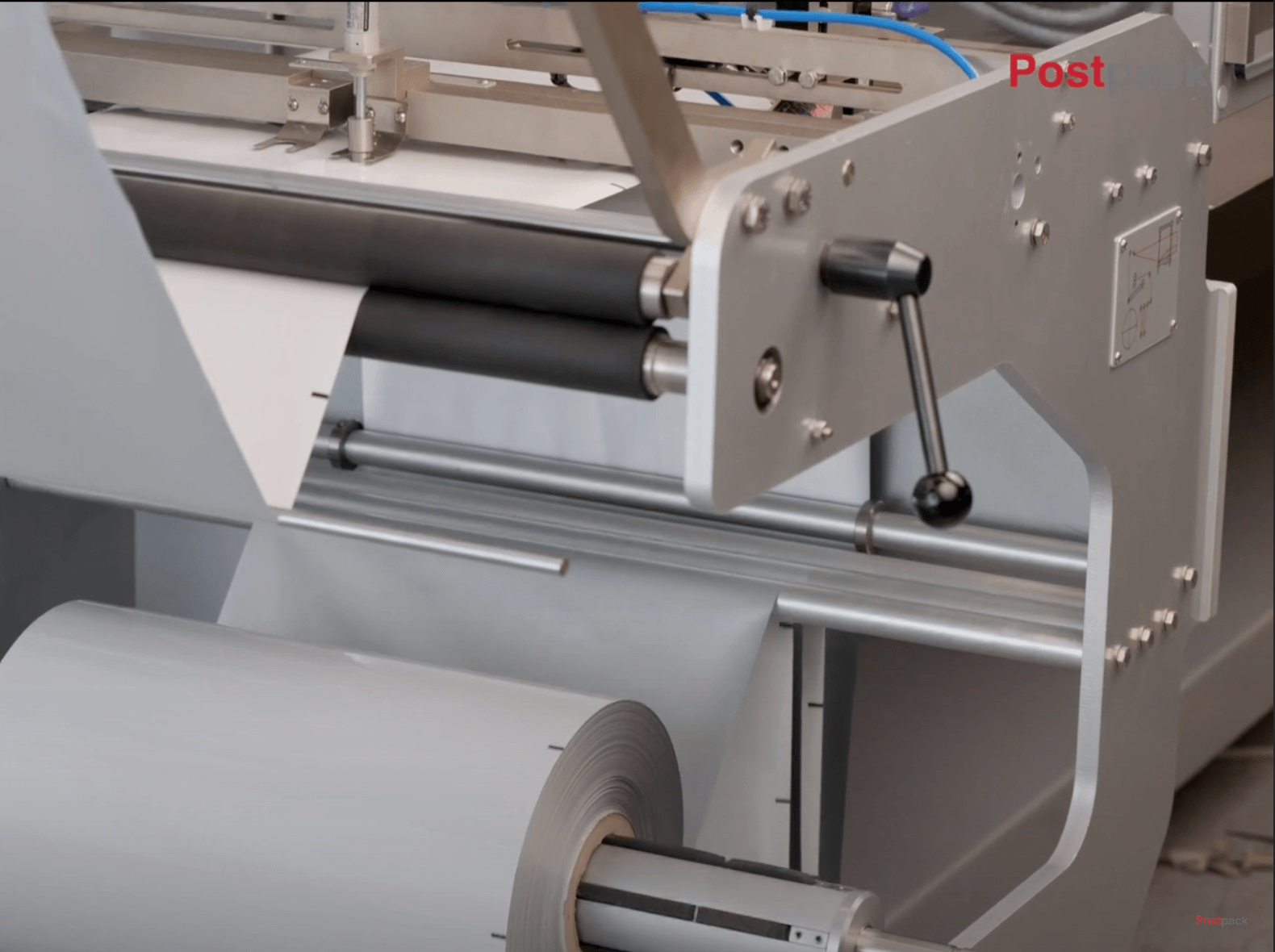

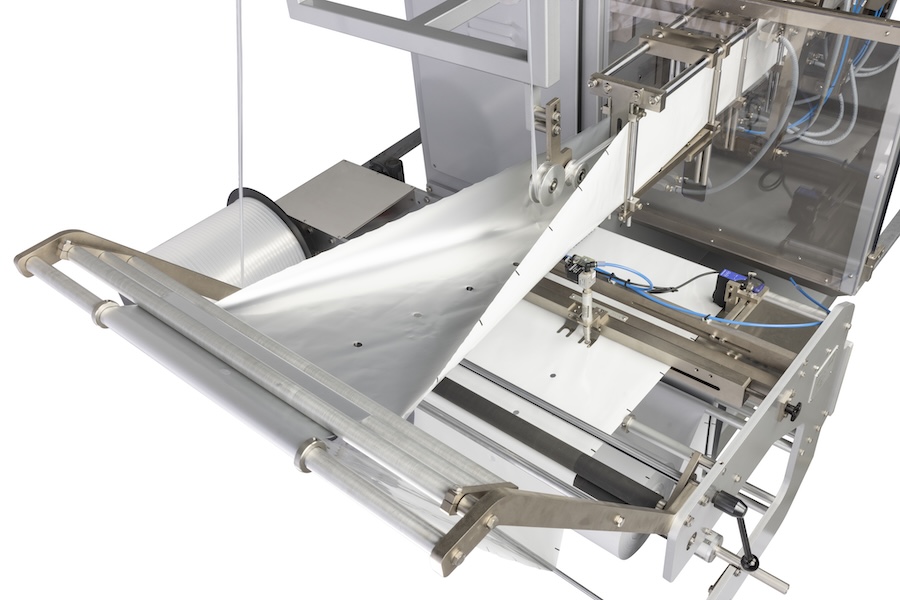

Starting from a reel of heat-sealable material, the film is folded into a “V” shape and by intermittent motion, the machine forms the sachets and cuts them individually, after that, they are transported to the opening, filling (2 -3 stations) and sealing station.

The dosage can be made according to the product to be packed:

  1. Auger dispenser for powdered products.
  2. Volumetric dispenser for granulated products.
  3. Dosing unit for liquids or pastes.

Technical Specifications + sachet types and sizes

Model
MH-170 Simple
MH-170 Duplex
Speed:
100 spm
200 spm
Pouch mínimum size:
85x90 mm
65+65x90 mm
Pouch màximum size:
170x270 mm
85+85x270 mm
Volume:
5 - 500 cc
5 - 150 cc
Electrical consumption:
3.0 KW
4.0 KW
Reel size:
Ø Max = 450mm / Anch. Max = 540mm / Cono interior: 70 a 75mm
Machine dimension:
1125 mm x 1895 mm x 4200 mm
