SV-30US

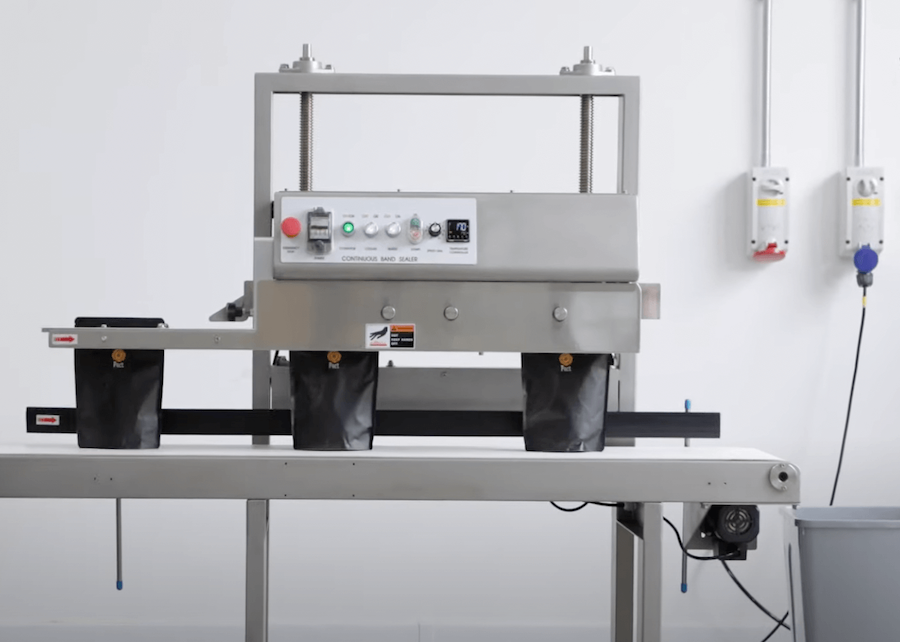

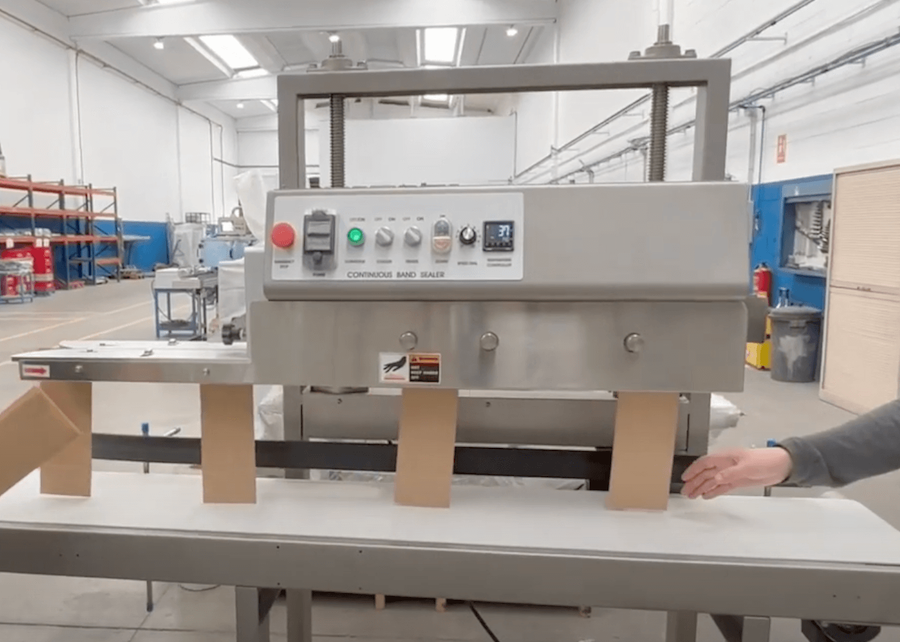

SV30U automatic band sealer is an ideal equipment for small or medium companies that have a semi-automatic packaging line. Its motorized height adjustment allows it to work with bags up to 550 mm high and 15 kg in weight.

SKU: SV-30US Category:

Description

Descripción

SV30U automatic band sealer is an ideal equipment for small or medium companies that have a semi-automatic packaging line. Its motorized height adjustment allows it to work with bags up to 550 mm high and 15 kg in weight.

  • Left to Right operation as standard – Right to left built to order.
  • AISI 304 Stainless Steel construction – superb build quality.
  • 10mm Seal width as standard.
  • Quick cool down mode.
  • 88mm Deep throat sealing head (for handle bags).

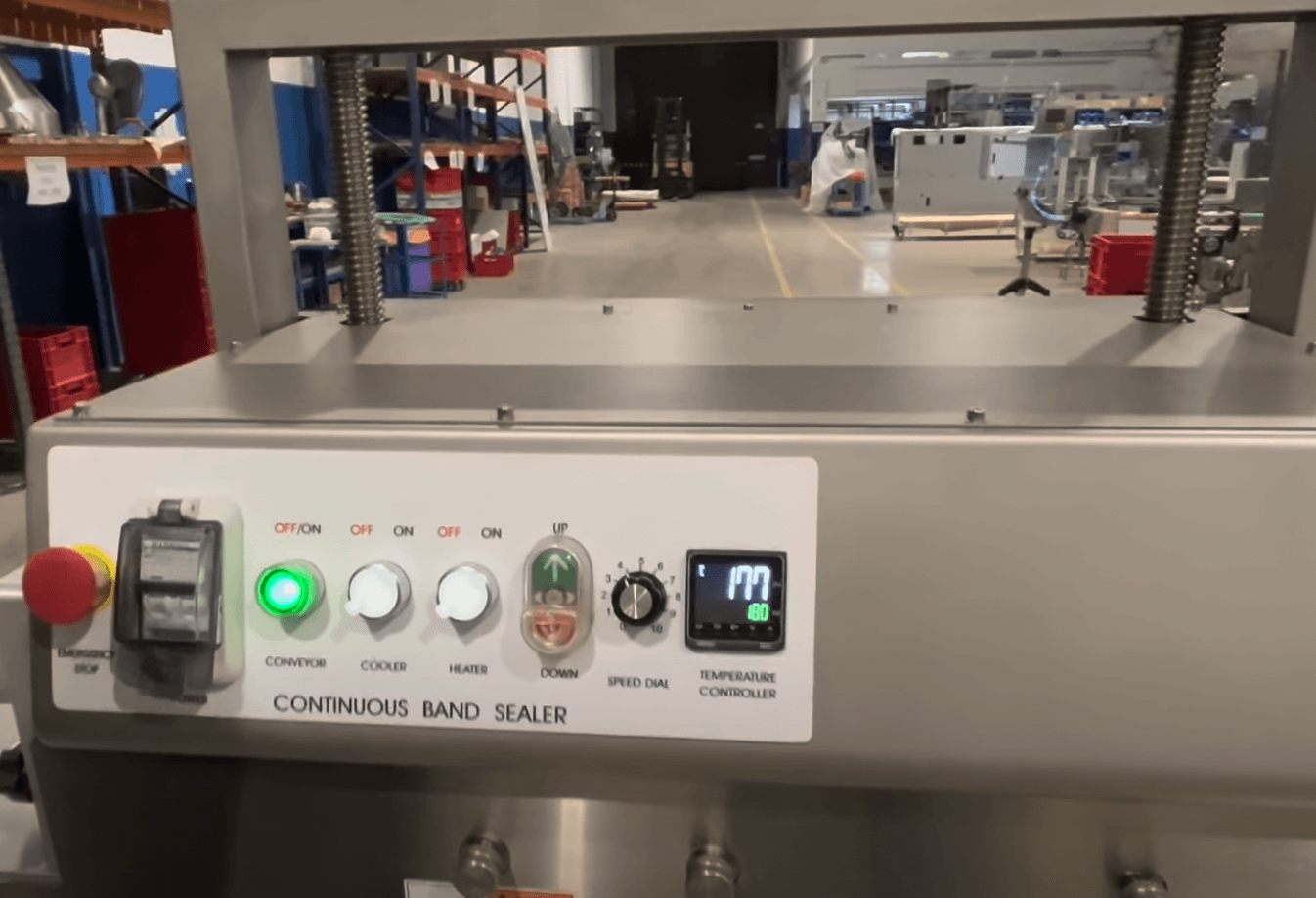

  • Motorized height adjustment – up & down push button control.
  • Integrated conveyor for bags up to 15kg, 550mm high.
  • Variable temperature control up to 400’C
  • Variable speed control (conveyor & sealer synchronized speeds.
  • Stainless steel protection plates running through sealer prevents contaminants falling on seal area.
  • Guide strip on conveyor belt to guarantee belt alignment.
  • Adjustable rear bag side guide.
  • Adjustable infeed stainless steel bag rest table.
  • Electrical parts from Schneider and Omron.
  • On lockable casters and height adjustable feet.
  • Fully CE compliant.

Technical Specifications + sachet types and sizes

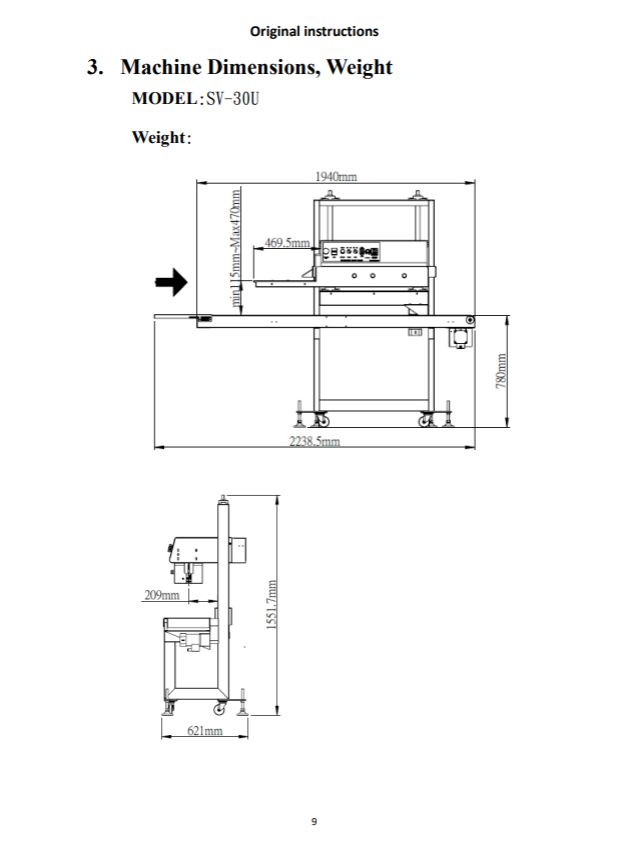

Dimensions:
1530 x 850 x 1560 mm (L x W x H)
Conveyor belt size:
1640 x 300 mm (L x W)
Electrical:
100 a 230 VAC / 1Ph / 50/60HZ
Infeed direction:
Left to right (standard)
Bag thickness:
Up to 0.7 mm
Sealing height:
680 mm
Sealing speed:
0-15 m per min. (variable speed)
Temperature range:
0-399 degrees Celsius
Sealing width:
Standard 10 mm (5/15/20mm available)
Bag length range
110-470 mm
Seal throat depth:
90 mm
Electric components:
Schneider, Omron

Videos

See the machine working

SV30US Bath Salt pouches 0:37

SV30US Handled pouches on SV 30US 0:44

SV30US Large Pouches on SV 30US 0:30
